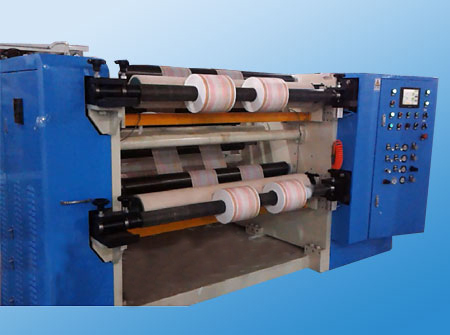

Model SE High Speed Machine Especail For Birthable Film
·The whole machine is controlled by PLC system.It can set working parameters via the touch screen as per slitting requirement.LCD has the function such as start buffer,loose proof and meter counter etc,and it is very easy for operation.
·Intorduce Automatic Tension Control System for unwinding,keep the unwinding tension constant.It is also can controled by taper control according to slitting requirement.EPC canTrack Edge or Track Line automatically ensures the correct position of the running material.
·Main drive and rewinding section is driven by one vector contorl motors separately,and rewinding diameter as persliting requirement.The contorl method is automatic digtal taper.
·The rewinding roller is air differential shaft,slip force can be adjusted automatically to accommodate thickness variety of the material for multi-roller slitting.
Main technical
|
Max.dia.of unwind |
600mm |
|
Max.dia.of rewind |
600mm |
|
Max.Unwind width |
1650mm |
|
Max.Seed |
300m/min |
|
Dia.og roll core |
φ76mm |
|
Width of final roll |
80-1650mm |
|
Tolerance of EPC |
±0.5mm |
|
Weight of machine |
2500kg |
|
Total power |
12kw |
